DMM Steel Offset D Locksafe
£15.50 Exc. VAT
£18.60 Inc. VAT
£18.60 Inc. VAT
Quantity:

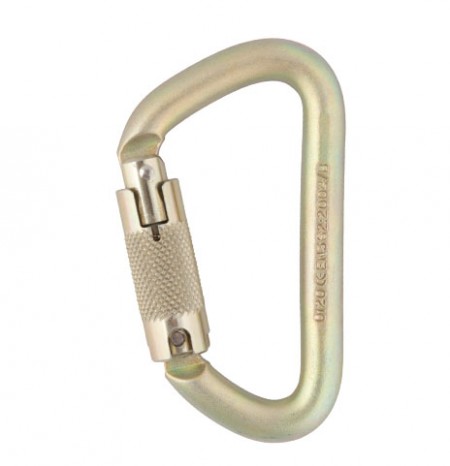

An offset D shaped connector takes the spinal loading strengths of a D shaped back but extends the basket on one side to maximize gate opening and overall size without compromising too much on ergonomics and weight. Cold forged from 12mm bar, the strengths achieved in testing exceed 45kN and it is first choice in applications requiring stronger connectors in the systems used.
Description
This Locksafe locking mechanism gives predictable, fast acting security when attached and released.
Features
Approved to EN362:2004/B
Offset D shape maximises the gate clearance 12mm bar section for maximum strength
Cold forged and fully heat treated carbon steel for high strength and durability
Zinc plated to EN ISO 2081:2008 Fe/Zn 5c standard for corrosion protection
Recommended for general use in high strength environments
Individually marked for traceability
Features
Approved to EN362:2004/B
Offset D shape maximises the gate clearance 12mm bar section for maximum strength
Cold forged and fully heat treated carbon steel for high strength and durability
Zinc plated to EN ISO 2081:2008 Fe/Zn 5c standard for corrosion protection
Recommended for general use in high strength environments
Individually marked for traceability
Key Features
| Strength (Gate Closed) | Gate Opening | Weight | ||
|---|---|---|---|---|
| 45kN | 18mm | 250g |
Brand: DMM
Product Code: DMMSODLShipping Weight: 0.3kg.
